In the last blogpost we discussed design ideas for instrumentRs v0.2.0. Here, I will mainly focus on the mock interface for testing instruments drivers developed using instrumenRs v0.2.0. If you haven't already done so, it is highly recommended that you read the last blogpost first for context.

In addition to a mock interface, proper error handling now also been implemented. This, turns out, was in fact fairly straightforward in comparison to v0.1.0, as instrumentRs v0.2.0 will be fully generic over the interface. The thiserror crate was, as usual, invaluable in error handling and propagation.

Testing instrument drivers

To test an instrument driver we want to make sure that when the end user calls a given method, the right bytes are sent to the instrument. Furthermore, when an instrument is queried, the correct query command should be sent, but then the received response should also be decoded correctly.

This kind of testing can be facilitated by using a mock interface. A driver author can use this mock interface to implement tests for the instrument driver. These tests should allow maintaining, refactoring, etc., the instrument driver in the future without having access to the actual hardware.

What should a simple test look like?

Let us consider once more the simple DigOutBox. Each of the 16 channels of this box can be turned on or off, but we can also receive the state of these channels individually. The function calls for these two functions in the instrument channel implementation look like this:

pub fn get_channel(&mut self) -> Result<Channel, InstrumentRsError> {
    ...
}

pub fn set_channel(&mut self, val: Channel) -> Result<(), InstrumentRsError> {
    ...
}

Here, the set/get values are represented by a DigOutBox specific Channel, which is a simple enum like this:

pub enum Channel {
    /// The channel is on.
    On,
    /// The channel is off.
    Off,
}

The DigOutBox command interface description tells us what the instrument driver needs to send to the interface when communicating. For setting/querying a specific channel this would look like this:

  • Turn channel 3 on:
    • Driver sends to instrument "DO3 1\n".
  • Query status of channel 2:
    • Driver sends to instrument "DO2?\n".
    • Instrument responds with "1\n" if the channel is on or"0\n" if the channel is off.

Here, \n is the end of line terminator used by the DigOutBox.

To test turning the channel on, we want to be able to write a test that might look somewhat like this:

#[test]
fn turn_on_channel3() {
    let expected_writes = vec!["DO3 1\n".as_bytes().to_vec()];
    let interface = MockInterface::new(vec![], expected_writes);

    let mut inst = DigOutBox::new(interface);

    inst.channel(3).unwrap().set_channel(Channel::On).unwrap();
}

Here, we are first defining what we expect to write to the instrument in the expected_writes variable. This is exactly the command that needs to be sent to the instrument in order to turn on channel 3. The MockInterface requires expected_reads and expected_writes to be in the form Vec<Vec<u8>> (more on this later). We then create a new MockInterface. To this mock interface we provide the expected reads (no expected reads in this case, thus vec![]) and the expected writes. Then we create a new DigOutBox instrument and feed it the mock interface. Finally, we call the appropriate function and unwrap heavily (for now). The MockInterface itself ensures that the actual write is the same as the expected write and that the expected_write and expected_read vectors are fully depleted at the end of the test.

Let's do another example: To test reading the status of channel 2 and assuming it is turned on in the response would look like this:

#[test]
fn read_channel2_on() {
    let expected_writes = vec!["DO2?\n".as_bytes().to_vec()];
    let expected_reads = vec!["1\n".as_bytes().to_vec()];
    let interface = MockInterface::new(expected_reads, expected_writes);

    let mut inst = DigOutBox::new(interface);

    let ch2_state = inst.channel(2).unwrap().get_channel().unwrap();
    std::assert_matches!(ch2_state, Channel::On);
}

Here we now have an expected read and an expected write. We create a new MockInterface with these values. Then, identical to the example above, we create a new DigOutBox instrument and run the wanted command. However, this time we store the returned value in ch2_state and assert that it matches the state that we told the interface to send back to the driver.

Does the driver author experience matter?

So far so good, however, this is still fairly clunky. In instrumentRs v0.2.0, testing should be as straightforward as possible for the driver author. The following functionality should allow for this:

  • Expected read and write values can be provided in a more general way that agrees with how humans think about what is sent back and forth.
  • Setting up the instrument with the mock interface is too verbose in above examples and should be streamlined.
  • If an error occurs, we want to provide useful and nicely formatted error messages.

All of these improvements can be implemented with two fairly simple macros that aid the driver author with testing. To understand how these macros are set up, let us first discuss the mock interface implementation and what it actually does.

The mock interface

First off, the mock interface is solely used for testing an instrument driver. While the driver itself from the perspective of the end user will depend on instrumentRs, the mock interface itself is not required by the end user. We thus put the mock interface behind a feature. This allows a driver author to set up a Cargo.toml file as in the following excerpt:

[dependencies]
instrumentrs = "0.2.0"

[dev-dependencies]
instrumentrs = { version = "0.2.0", features = ["mock-interface"] }

Thus, the mock interface itself will only be available when testing, but the end user does not suffer the additional code and dependencies. This also allows us also to add some dependencies to make testing easier/prettier.

The implementation

The mock interface itself is implemented as:

pub struct MockInterface {
    /// What we expect the interface to read from the device.
    ///
    /// This is a flattened vector of all the bytes that we expect to read.
    expected_read: Vec<u8>,
    /// Index where we are currently at in the `expected_read` when reading.
    ///
    /// At the end, this must be equal to the length of the `expected_read` vector.
    read_idx: usize,
    /// What we expect the interface to write to the instrument.
    ///
    /// If filled, this is a flattened vector of all bytes we expect to write.
    expected_write: Vec<u8>,
    /// Index where we are currently at in the `expected_write` when writing.
    ///
    /// At the end, this must be equal to the length of the `expected_write` vector.
    write_idx: usize,
    /// Number of flushes we expect.
    ///
    /// Every time a full command is written the interface must be flushed. Thus, this number is
    /// equal to the number of full write commands.
    flush_exp: usize,
    /// Number of flushes counted.
    ///
    /// We expect one flush to be called for every full package that is sent to the device.
    flush_rec: usize,
}

We implement a new constructor for creating a MockInterface as following:

impl MockInterface {
    pub fn new(expected_reads: Vec<Vec<u8>>, expected_writes: Vec<Vec<u8>>) -> Self {
        ...
    }
}

The user in this case would provide Vec<Vec<u8>>s for the expected reads and writes. Each inner Vec<u8> is one full command that is written or read and must include the terminator, if required. This also allows us to count the number of expected flushes of the instrument: Each time a full command is written, the instrument must be flushed. Thus, the number of counted flushes must agree with the length of expected_writes that is supplied when constructing a new MockInterface.

To make the mock interface compatible with any instruments, we also need to implement the std::io::Read and std::io::Write traits. These implementations contain the error checking of expected read/write versus received read/write.

Mock errors

In order to provide excellent errors, instrumentRs v0.2.0 provides a MockError type with nicely formatted messages. Below example shows a simplified version of MockError:

pub enum MockError {
    UnexpectedWrite {
        expected: u8,
        expected_char: char,
        recieved: u8,
        received_char: char,
    },
    NoMoreReadData,
    NoMoreWriteData,
}

For clarity, all derives for thiserror were omitted. These errors have implementations to turn them into std::io::Error types, a requirement to return them from the implementations of std::io::Read and std::io::Write.

The UnexpectedWrite error triggers when a byte in the data written to the interface is not the same as the expected byte. The error message will provide the mismatching expected and received byte as a u8 and as a char.

The NoMoreReadData is emitted when the driver tries to read more data from the interface, but the expected_read data has already been fully read. This error will mainly trigger when working with instruments that do not read up to a terminator but rather read a defined number of bytes.

The NoMoreWriteData error analogously will trigger when the driver tries to write more data to the interface than are expected from expected_write.

Below, we show how to interact in a nice and helpful way with these errors.

Panics

For proper testing, we also want to make sure that all expected_read and expected_write bytes were used up during the test and that flush was called the appropriate amount of times during the test. Since we pass ownership of the mock interface to the instrument driver, we do not have access to it after the tests are finished to call some kind of finalize() function that checks for proper depletion and flushing. However, we can call such a finalize() check when the interface itself is dropped as following:

impl Drop for MockInterface {
    fn drop(&mut self) {
        if !thread::panicking() {
            self.finalize();
        }
    }
}

This will run the above mentioned checks and, if any of them fail, will panic. If the thread the test is running in has already panicked, we ignore these finalize() checks to let the user deal with one problem at a time. This also keeps the error/panic messages during testing neat.

The driver author experience matters!

As demonstrated above, using using the MockInterface as it is defined is clunky and leads to code that is hard to read. Above examples have, e.g., many .as_bytes().to_vec() statements. Let's make this more convenient!

To set up an instrument test, e.g., using the DigOutBox driver as in the example above, the smock! (synchronous mock) macro is provided. This simplifies the test above to read the state of channel 2 to the following:

static TERM: &str = "\n";

#[test]
fn read_channel2_macro() {
    let expected_writes = ["DO2?"];
    let expected_reads = ["1"];

    let mut inst = smock!(DigOutBox, expected_reads, expected_writes, TERM);

    let ch2_state = inst.channel(2).unwrap().get_channel().unwrap();
    std::assert_matches!(ch2_state, Channel::On);
}

We first statically define the terminator since we will use it for all tests. The smock! macro then takes the following arguments:

  1. The instrument driver itself, which has, since it is an instrumentRs driver, a well defined constructor.
  2. The values we expect to read from the device. These values can be provided in any iterable list of types that are compatible with the Writable trait.
  3. The values we expect to write to the instrument. Again, any iterable list of values compatible with the Writable trait are allowed.
  4. (Optional:) The terminator, which must also simply be compatible with the Writable trait. If a terminator is given, its byte(s) representation will be automatically appended to each expected read and write.

The smock! macro then returns the instrument itself loaded with the mock interface. This structure allows us to define expected reads and writes in an easy to understand form and create an instance of the instrument that is loaded with an adequate (synchronous) mock interface.

One more issue to address here is the simple unwrapping of the result. While generally fine for a test, it is not the most convenient way to debug failing tests. Since the MockInterface must return std::io::Error types, unwrapping a test error returns an error message that is not very pretty. For example, if we change the expected write above to "DOut2?", we would get the following output when running with cargo test:

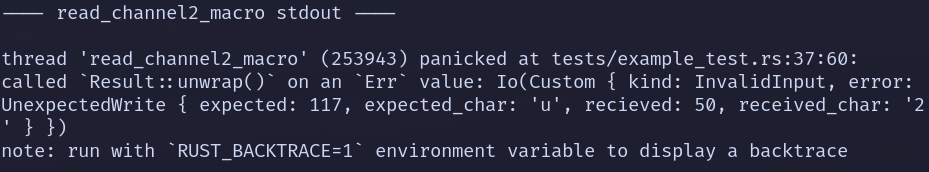

Error message in test when simply unwrapping a result

Even if you terminal window is wider, this is an ugly error message.

We thus provide a second macro to unwrap mock errors in a pretty fashion. The whole failing test would then turns into this:

static TERM: &str = "\n";

#[test]
fn read_channel2_macro_pretty() {
    let expected_writes = ["DOut2?"];
    let expected_reads = ["1"];

    let mut inst = smock!(DigOutBox, expected_reads, expected_writes, TERM);

    let ch2_state = u!(inst.channel(2).unwrap().get_channel());
    std::assert_matches!(ch2_state, Channel::On);
}

The u! macro simply matches on the result. If the result is Ok(inner), inner is returned. If the result is however an Err(e), the error message e is formatted colorful using termcolor and then printed to stderr. After printing the macro panics to abort the test. The terminal output now looks like this:

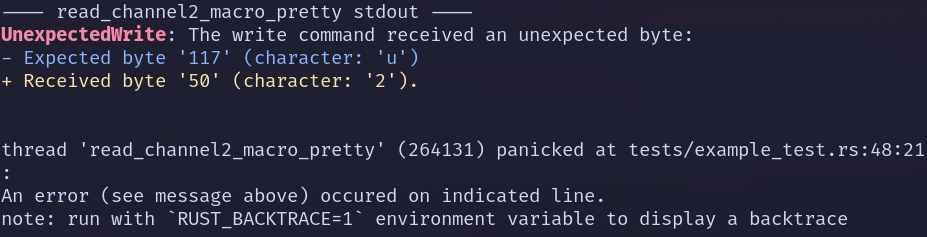

Error message when using the provided u! macro instead of unwrapping results.

The error message is now nicely formatted:

  • The error type itself is shown in bold red.
  • The "expected byte" line, showing the expected byte and its character representation, is printed in blue, as it is likely the "good" value.
  • The "received byte", showing the received byte and its character representation, is printed in yellow, as it is likely the "bad" value.
  • The subsequent panic message indicates the proper line in which the test failed and adequately states so.

For driver authors that can, for some reason or another, not display colorful terminal output, a uplain! macro is also provided that does the same formatting, however, does not color the output.

Note that the termcolor crate is of course only a dependency when the "mock-interface" feature is activated. Thus, this dependency will not be forwarded to the end user as it is only necessary for testing/development.

Testing the mock interface

In order to ensure that the mock interface is indeed doing what we want it to do, two mock instruments (enough with the mocking already!) were created that interact either with &str/String or with &[u8]/Vec<u8> for the W/WR types used in the transport module. These integration tests allow us to keep the mock interface itself tested such that the correct error messages get returned and ensure that the mock interface itself keeps on working.

What errors did I find?

After writing the mock interface and writing a few tests for DigOutBox, I quickly discovered the following two errors in the previous version of my example driver:

  • The number of flushes were in fact incorrect. The interface was at times flushed twice after a write.
  • The terminator was appended twice when sending certain commands to the instrument.

When testing the mock interface itself, I also found an error in how the read index advanced when writing tests where no terminator is sent, but an exact number of bytes is read.

Even if not getting/setting all properties of an instrument are tested, a few tests can really smoke out errors in how the transport is implemented! In case you needed it, how I found my own bugs shows once more how valuable tests are.

Next steps for instrumentRs v0.2.0

So what is next for instrumentRs? The previous next steps still apply, however, error handling and the creation of a mock interface are finished for now. I anticipate to next work on implementing asycn support and, once worked out, write another blogpost about it. The longer term outlook remains the same as published in the previous next steps section.

Comments, questions, ideas?

As always, if you have comments or questions, please get in touch with me. You can do so via instrumentRs2 on GitHub, e-mail, Bluesky, or Matrix. I'm excited to hear your thoughts and ideas!
